AUDIO

DUAL UNDULA OSCILLATOR

450€

(for Kit, please ask)


To buy, simply send an email: LARIX ELEKTRO

IMG 1
IMG 2
IMG 3
IMG 1
IMG 2
IMG 3

WHAT'S THAT THING ?

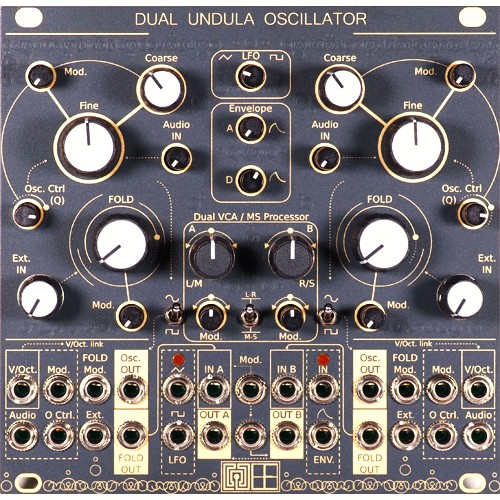

The DUAL UNDULA OSCILLATOR is a dual complexe oscillator that has a lot of internal functionalities that allows a lot of various uses beyond a simple dual oscillator:
Full synth voice / Dual complexe Oscillator / Filters / MS processor...

The module has plenty of sub modules:
- 2 sinus wave VCO, that can works as filter.
- 2 wave folder each connected to one oscillator, with a VCA in between.
- 2 bipolar VCA (that act as lowres. Ring modulator).
Both VCA can be used inside a Mid-Side converter.
- 1 LFO
- 1 Attack-Decay envelope.

A lot of options are available on the back:
- Access points to modify the routing, or to add more I/O.
- All critical capacitors are through Holes, to allows easy modifications.
Technical specifications:
+12V : 190mA (max.)
-12V : 190mA (max.)
26HP, 35mm deep (Approx.)

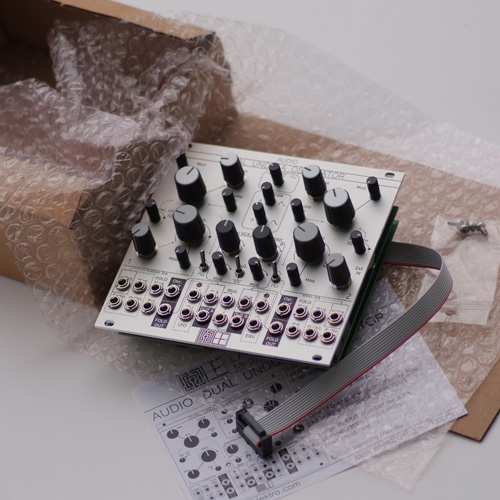

Package Contents
The module, wrapped in antistatic protection.
Four M3 screws.
The power cable.
Quick start map of the module.
User manual: AUDIO DUAL UNDULA OSCILLATOR
Extension manual: AUDIO DUAL UNDULA OSCILLATOR - Extensions
Build doc (KIT version): AUDIO 4TOMS BUILD for advanced users only !

Extension:
Hacking the module, adding I/O: CONTROLE Mult.
Adding attenuverting control to CV (Ocs. Ctrl., PWM): CONTROLE AttV-4
