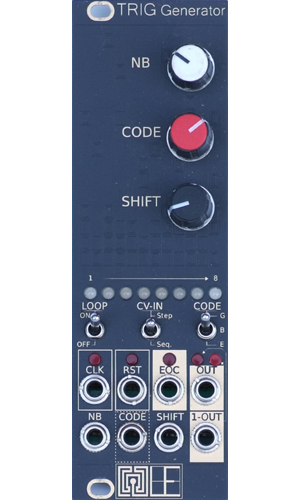

WHAT'S THAT THING ?
The TRIG Generator is intended to generate trig sequences for... Anything:
It has 8 steps whose content can be modified using a single parameter.
Of course, the number of steps is adjustable, as well as the choice of the first step.
And only one parameter to generate the sequence?
Yes, the module uses Euclidean rhythms, but also Binary or Gray. (See doc. below)
The module requires an external clock inserted at the CLK input. Or in fact, any signal.
The module has been designed to be able to synchronize with your patch, with its RESET RST input.
Similarly, it can synchronize other modules of your patch with the End Of Cycle EOC output.
Combined with the looping option, it is possible to further expand the possibilities of the module.
Each of the 3 parameters has its own CV entry. It is thus possible to dynamically vary the sequence using CVs.
There are other options to manager the CV inputs and also the output.(See doc. below)
Also: there are 2 outputs: OUT, of course, and
1-OUT, which is the "complement" of OUT.
Extend your module
The module can be enriched by an expansion module:
The AttV-4 adds to the CV entries an adjustment of the CV value by an attenuverter.
The connectors on the back of the module save connectivity at the front.
A clock generator, or a LFO, or any signal into the CLK input.
Any other module that need to be triggered.
The module don't works alown, it needs at least one signal into the CLK input to play the sequence.
+12V : 48mA
-12V : 8mA
8HP, 30mm deep (Approx.)
The module, wrapped in antistatic protection.
Two M3 screws
The power cable.
Quick start map of the module.
