WHAT'S THAT THING ?

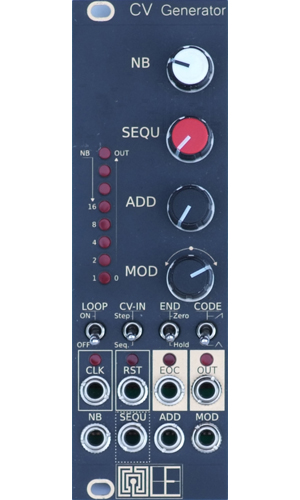

The CV Generator allows you to generate
CV sequences, up to 16 steps. with only 4 parameters:
- The number of steps NB from 1 to 16
- 3 parameters adjusting the sequence.
The module requires an external clock inserted at the CLK input. Or in fact, any signal.
The module has been designed to be able to synchronize with your patch, with its RESET RST input.
Similarly, it can synchronize other modules of your patch with the End Of Cycle EOC output.
Combined with the looping option, it is possible to further expand the possibilities of the module.
Intermittent play of the sequence, chaining...
Each of the 4 parameters has its own CV entry. It is thus possible to dynamically vary the sequence using CVs.
Presets, rich variations of the sequence, morphing between 2 sequences...
There are other options to manager the CV inputs and also the output.(See doc. below)
Extend your module:
The module can be enriched by 2 expansion modules:
- The AttV-4 adds to the CV entries an adjustment of the CV value by an attenuverter.
The connectors on the back of the module save connectivity at the front.
- The Shift-R adds 8 Trig outputs to the module.
A clock generator, or a LFO, or any signal into the CLK input.
Any other module that need a CV stepped by the CLK IN.
The module don't works alown, it needs at least one signal into the CLK input to play the sequence.
+12V : 40mA
-12V : 8mA
8HP, 30mm deep (Approx.)
The module, wrapped in antistatic protection.
Two M3 screws.
The power cable.
Quick start map of the module.
